Mineral
insulated assemblies
• High pressure rated
• Thermocouple or RTD calibrations
• High Temperature rated and
thermal shock resistant
• Explosion proof, moisture and
chemical resistant
• High quality control using
ASTM and ANSI standard testing
• High performance sheath materials
and design capabilities

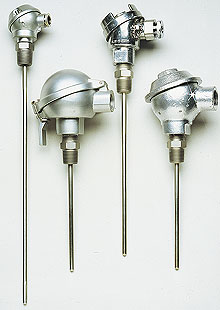

Industrial
Thermocouples and RTD Assemblies
Specifications
& Design Capabilities:
Calibration Types. . . .J, K, T, N, E, R, S, B RTD
Diameters. . . . . . . .Minimum .010" to 1.250" or more
Length. . . . . . . . . 125" minimum maximum consult HCS
Leads. . . . . . . . . .Stainless Braid, SS Armour, PVC, Fiberglass
Junctions. . . . . . . .Grounded, Ungrounded, Exposed, Dual Isolated
Multipoint common, isolated or spaced
Dual grounded or dual exposed isolated
Termination Heads. . . .Explosion Resistant, Moisture/Chemical resistant,
FDA (food), Polypropylene, Aluminum, thermosetting
Plastic Bare leads, Spade Lugs, Standard Male Plug,
Standard Female Jack, Miniature Plugs, Jacks
Right angled. . . . . . with or without protection tubes
Styles. . . . . . . . . Bare wire, Nipple Union Nipple, Leads, head
Process fittings, Twell fittings, flanged magnetic,
Spring loaded, Flexible
To order
specify application, max temperature,
max pressure and style along with diameter
length and termination
