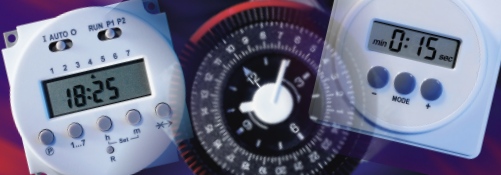

Programmable Timers
are compact digital timeswitchs which provides precise
timing with the flexibility of daily or weekly programming.
Simple and fast setting by means of push buttons and
display prompts.
Programmable Timers Popular applications include:
Heaters, filters, pumps, fans, signs, blowers, indoor
and outdoor lighting, feeders, security/alarm systems,
and process controls. Skip function used for skipping
all the switching programs of the next calendar day.
Reset function for clearing the whole switching program.
Programmable
Timers Features:
•
24
hour/7 day timing combined 9 on/off operations
daily
• Repeat programs provide up to 63
switching cycles per week
• Lithium battery provides minimum
5 year reserve (unpowered)
• Manual override skip a day
Programmable
Timers Specifications:
Setting Options. . . Time of day, Single Day
Repeat Programs for daily Recurring Switching
1 2 3 4 5 ( Monday through Friday )
1 2 3 4 5 6 ( Monday through Saturday )
1 2 3 4 5 6 7 ( Monday through Sunday )
6 7 ( Saturday and Sunday )
Skip function for skipping all the switching programs
of the next calendar day
Reset function for clearing the whole program
Relay Switch Rating. 16 Amps at 45 deg C 10 Amps at 55 deg C
Switching. . . . . . SPST SPDT
Operating Voltages. .120 VAC 240 VAC 24 VAC 50/60 Hz 12 VDC 24VDC
Connections. . . . . 6.3 X 0.8 Tab Terminals
Mounting. . . . . . .Front Panel or DIN rail accessories available
