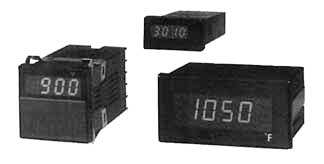

Digital
Indicating Meters are available for a wide range of inputs
and processes like indicating Temperature, Pressure, Flow,
Level, Humidity etc.
The inputs to these Digital Indicating Meters can be programmed
for thermocouples, RTD, millivolts, mAmps, Volts etc.
Digital Indicating Meters are panel mountable and are available
with NEMA 4 front panels as an option. Indicators have a full
3 year warranty and are CSA and UL approved.
Digital
Indicating Meters Features:
•
3 Common DIN Sizes
• Field configurable inputs
• Large LED displays in various colours
• Scalable as required by input transducer
Digital
Indicating Meters Specifications:
Voltage. . . . . . . 12/24 volts DC, 86 to 265 VAC
Sampling Rate. . . . 3 times per second or better
Accuracy. . . . . . +/-15% of scale +/-1 digit
Resolution. . . . . degree or 0.1 degree
Operating Ambient. . 14 to 122ºF 0 to 90% RH
Sizes. . . . . . . . 1/32 DIN 1" H x 1 7/8" W x 4" in panel depth
1/16 DIN 17/8" x 1 7/8" x 3 3/8" in panel depth
1/8 DIN 1 7/8" H x 1 7/8" W x 3" in panel depth
