A large variety of
Chart Recorders are available for various applications
from temperature with thermocouples RTD's or with
analog inputs of voltage or current for measuring
pressure, speed, level, flow or any other process
parameter. These Chart Recorders are configurable
and are available with single or multiple inputs up
to 6 pens.

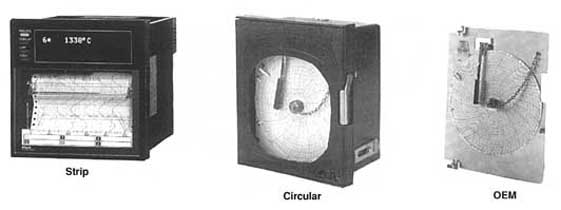

Strip Chart Recorders are available from 100 mm (4")
to 180 mm (7") with a wide variety of features like
alarms current and voltage outputs or digital communications.
Circular Chart Recorders come in 6, 8, or 10" chart
diameter sizes and are available with user selectable
inputs and alarm or retransmission outputs.
OEM Chart Recorders are available as a skeleton units
without case and door or with just front plastic covers
for panel mounting. OEM Chart Recorders are available
with configurable inputs and 2 DPPT relay outputs
in 1 or 2 pen versions. The chart sizes are 4, 6,
8, and 10".
Chart Recorders Features:
•
Circular Chart
Recorders or Strip Chart Recorders
• Single or
multiple pens
•
Various chart
and strip sizes
• Settable
for a variety of measurements
• Continuous
or digital printing
• Easy replacement
of cartridge pens
• Relay or
current outputs
100
mm Strip
Chart Recorder
Number of inputs. . . . . . 1 or 2 3 or 6
Input Signals. . . . . . . .RTD's, Thermocouples Volts millivolts mAmps
recording range. . . . . . .Scalable full width of chart
recording System. . . . . . Ink Cartridge
chart length. . . . . . . . 15.5 Meters
Chart Speeds. . . . . . . . 5 to 1500 mm/Hr
Accu racy. . . . . . . . . .+/- 0.15 %
Size. . . . . . . . . . . . 144 x 144 x 285 mm
Alarms. . . . . . . . . . . 3 amps 240 volts AC
180 mm
Strip Chart Recorder
Number of inputs. . . . . . 6 or 12 continuous or intermittent recording
Input Signals. . . . . . . .RTD's, Thermocouples Volts millivolts mAmps
recording range. . . . . . .Scalable full width of chart recording
System. . . . . . . . . . . Ink Jet
Chart length. . . . . . . . 20 Meters
Chart Speeds. . . . . . . . 5 to 300 mm/hr continuous recording
. . . . . . . . . . . . . . 310 to 1500 mm/hr intermittent recording
Accuracy. . . . . . . . . . +/- 0.15 % + 1 digit
Size. . . . . . . . . . . . 288 x 288 x 199
Alarms. . . . . . . . . . . 3 Amps 240 volts AC
Circular
Chart Recorder
Number of inputs. . . . . . Single or dual inputs
Input Signals. . . . . . . .RTD's, Thermocouples 0-5 volts 4-20 mAmps
recording range. . . . . . .Scalable full width of chart
recording System. . . . . . Ink Cartridge
chart Sizes. . . . . . . . .4, 6, 8, and 10"
Chart Speeds. . . . . . . . 0.1 to 168 hrs
Accu racy. . . . . . . . . 0.25 %
Size . . . . . . . . . . . .13.14"Hx15.13Wx3.63"D
Alarms. . . . . . . . . . . dual alarms 3 Amps 240 VAC
OEM
Circular
Chart Recorder
Number of inputs. . . . . . Single or dual inputs
Input Signals. . . . . . . .RTD's, Thermocouples 0-5 volts 4-20 mAmps
recording range. . . . . . .Scalable full width of chart
Recording System. . . . . . Ink Cartridge
Chart Sizes. . . . . . . . .4, 6, 8, and 10"
Chart Speeds. . . . . . . . 0.1 to 168 hrs
Accuracy. . . . . . . . . . Temperature +/- 0.25ºC or 0.5ºF
