Hand Held Infrared Thermometer With Laser Marker


Canada & USA Toll Free
1 800 279-9912

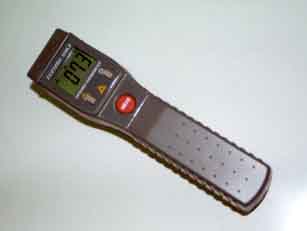

Hand Held Infrared Thermometer With Laser Marker Model 610LF

• Response Time: 1 second
• Spectral Response: 6 to 14mm
   nominal
• Emissivity: Preset 0.95
• Analog Output: 1mV/ºF
• Detection Element: Thermopile
• Optical Lens: Fresnal Lens
• Sighting: 1-beam laser marker
  < 1mW (class 2)

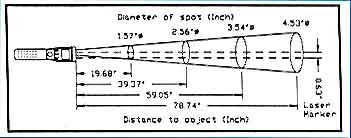

• Field of View: 2.56"Æ at 39.37"

Hand Held Infrared Thermometer With Laser Marker
 General Specifications:
Display:
3 1/2 digit liquid crystal display (LCD) with maximum reading of 1999

Over Range:
(OL) or (-OL) is displayed

Low Battery Indication:
the battery level is displayed when the battery voltage drops below the operating level.

Measurement Rate:
2.5 times per second, nominal

Operating Environment:
32ºF to 122ºF at < 70% relative humidity

Storage Temperature:
-4ºF to 140ºF, 0 to 80% RH with battery removed from meter

Auto Power Off:
15 seconds approx.

Standby Consume Current:
<1mA

Battery:
4 pcs 1.5V (AAA size) UM-4 R03

Battery Life:
100 hours (continuity) typical with carbon-zinc battery
(Laser marker and Back-Light not illuminated)

Dimensions:
170mm(H) x 44mm(W) x 40mm(D)

Weight:
5.56 oz including batteries

 Hand Held Infrared Thermometer With Laser Marker
General Specifications:
Temperature Range:
0ºF to 500ºF

Display Resolution:
1ºF

Accuracy:
+/-3% of reading or +/-5.5ºF, whichever is greater@ 64.4 to 82.4ºF ambient operating temperature.

Temperature Coefficient:
+/-0.2% of reading or +/-0.36ºF, whichever is greater, change in accuracy per ºF change in ambient operating temperature above 82.4F or below 64.4ºF
