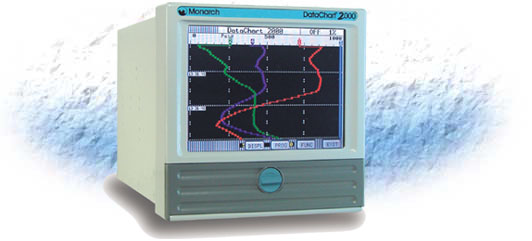

DataChart 2000 Series Paperless Recorders



Canada & USA Toll Free
1 800 279-9912

DataChart 2000 Series Paperless Recorders

If you  demand:
Higher reliability   Increased flexibility   Optimum efficiency   Lower costs
DataChart 2000 Series Paperless Recorders are the instruments for you!

Features
     Overview
     Specifications

 pdflogo.GIF (231 bytes)  Download a Catalog this is a large file, but it has great information

Features

blue.gif (875 bytes) 2, 4 or 6 direct universal inputs: DC voltage, current and thermocouples
blue.gif (875 bytes) High speed storage capability: up to 8 samples per second per channel.
blue.gif (875 bytes) Multiple storage media options: 3 1/2" 1.44Mb disk, 100Mb Zip™  disk or ATA Flash PCMCIA card up to 200Mb.
blue.gif (875 bytes) 5.6" Brilliant TFT active matrix color display or 5" monochrome display.
blue.gif (875 bytes) Intuitive Touchscreen Control with anti-glare coating.
blue.gif (875 bytes) Standard DIN enclosure: 144mm x 144mm bezel
blue.gif (875 bytes) 6 relay contact or solid state relay outputs/3 digital control input.
blue.gif (875 bytes) Companion Software for unit configuration, communication, data analysis, print and export to standard spreadsheet/database applications.

Overview
The DataChart 2000 has 2, 4 or 6 direct universal isolated inputs that are menu selectable for DC voltage, DC current and thermocouples. The intuitive Touchscreen control provides easy, fast set up and operation.

Display
Our brilliant 5.6" (142mm) active matrix TFT color display is the largest in it’s class and with a special anti-glare coated Touchscreen the viewability is second to none. If you need a more economical solution, the DC2000 can also be ordered with a super bright blue monochromatic display.

Recording
Data is stored in non-volatile internal RAM and downloaded to removable media automatically on a preset basis or on demand. Standard removable storage is a 3.5" 1.44Mb disk or, for large amounts of data, you can choose the 100 Mb Zip drive, or the PCMCIA card drive option which will store up to 200 Mb of Data!

Speed
A measurement rate of 8 samples per second for 1 channel makes the DC2000 ideal for recording process signals that change quickly such as pressure. Or, if you require information less frequently, you can select to record between 8 samples per second and ten minutes.

Communications
Communication options offer great flexibility in accessing data or controlling the DC2000. Data can be accessed and downloaded over standard phone line using the RS232C option and a modem. The RS485 MODBUS option will allow the DC2000 to be installed into an existing MODBUS network or you can connect up to thirty one recorders in series. The 10BaseT Ethernet port option allows direct connection to LAN’s or WAN’s and the standard TCP/IP protocol means that you can transfer data over the Internet.

There are more than 20 display modes to choose from. This gives you unparalleled flexibility to view only the data you need to see in virtually any format. Grouping of channels maximizes efficiency.

Specifications

Input Signals DC Voltage: Linear, Industrial square root, logarithmic Full Scale ranges: +/- 100mV, +/-1V, +5V, +10V and +25V.   Accuracy: 0.05%
DC Current: 4-20mA, 0 to 20mA and
10 to 50 mA. Accuracy: +/-0.1% using external 50 ohm shunt.

Thermocouple:

Resolution: 0.1C
TYPE ACCURACY Thermocouple burnout detection
J 0.1% J -210 to 1200C +/-1.5C -340 to 2190F +/-3.0F
K 0.1% K -270 to 1372C +/-1.5C -450 to 2500F +/-3.0F
T 0.2% T -270 to 400C +/-1.5C -450 to 750F +/-3.0F
E 0.11% E -270 to 1000C +/-1.5C -450 to 1832F +/-3.0F
R 0.16% R -50 to 1768C +/-3.0C -58 to 3200F +/-6.0F
S 0.17% S -50 to 1768C +/-3.0C -58 to 3200F +/-6.0F
B 0.22% B 0 to 1820C +/-4.0C 32 to 3300F +/-7.0F
C 0.13% C 0 to 2400C +/-3.0C 32 to 4350F +/-6.0F
N 0.10% N -270 to 1300C +/-1.5C -450 to 2372F +/-3.0F
OPERATING
Input Resolution 0.006% of full scale, 16 bit
Input Accuracy 0.05%
Input Impedance >10M Ohm on 100 mV, 1V ranges, >100K Ohm on 5, 10, 25V ranges
Input Channels 2, 4, or 6 direct
Measurement Rate 8/Sec - all channels
Math Functions   +, -, x, /, log, totalization, power, plus more.
EMC Compliance 89/336/EEC
RECORDING
Recording Rates Selectable from 8/sec. to 10 minutes
Data Format Proprietary binary format for data security.
Data Storage Data stored in non-volatile RAM and recorded automatically, or on demand, to on board removable media. Full media format and verify capability.
  MEDIA MEASUREMENTS CAPACITY
REMOVABLE 3.5" Disk 700,000 1.44Mb
  Zip Disk 50 million 100Mb
  PCMCIA Card 100 million Up to 200Mb
INTERNAL 1 Mb RAM (Non-Volatile)
  2 Mb RAM (Non-Volatile)
File Types Up to 15 channel (data) files, Alarm and Event files, Configuration files, Language files. Multiple files of different names on a single disk.
DISPLAY
Display Type Color CCFL backlit Active Matrix TFT Liquid Crystal Display (5.6 inch) with touchscreen control.
Resolution 320 x 240 pixels.
Display Type Mono CCFL backlit STN Liquid Crystal Display (5.0 inch) with touchscreen control.
Resolution 240 x 128 pixels.
Display Modes Graphics (Trending vertical or horizontal), Bar Graphs (vertical or horizontal), Digital Meters, Alphanumeric Alarm and Event Data or combinations on a split screen. Review trended data. Search by time, date or signal value.
Virtual Chart Speed Programmable from 0.5in/hr to 600in/hr or 10mm/hr to 15,000mm/hr. Chart speed is independent of storage rate.
Display Windows Time/Date, Graphics (Bars, Large Digital, Trends), Disk Status, Systems Status, Menu Button bar, Unit Identification, Alarms/Events.
Power Requirements 100 to 240, 50/60Hz or 125 to 300Vdc, 35VAmax. Optional 24Vdc +/-15%.
Power Fail Protection Programmed parameters stored in non-volatile memory. Clock battery backed. Data retention time without power >12 months. Chart and alarm browse buffers stored in non-volatile memory.
Safety UL (3111-1) cUL (IEC1010-1) CE low voltage directive 73/23/EEC. Complies with EN 61010-1.
OPERATING ENVIRONMENT
Temperature 5C to 40C per UL3111-1/IEC1010-1 with disk drive. -10C to 50C with PCMCA drive or Zip Drive.
Humidity 10% to 80% RH per UL3111-1/IEC1010-1.
Wash Down IP65 Front panel only.
OPTIONS
Alarm Contacts 3 or 6 isolated Form C, 3 amp @ 250Vac or 26 Vdc.
Solid State Relays 3 or 6, 0.5amp @ 30Vdc.
Remote Inputs 3 isolated inputs, user selectable as dry contact or 5 to 24 Vdc activated. Inputs share a common. Configurable for chart control, alarm acknowledge/reset, event markers, totalizer reset or logic input.
Communications ESD protected RS232 with full hand shaking. Supports Modem or isolated RS485 port. Comm Serial Protocol: MODBUS RT or MODBUS ASCII. Ethernet: 10BaseT. Unit may be remotely configured
Printer Port Parallel printer port (25 pin D shell connector.)
